27" 4K model FM·B2702D, FM·B2702DG
Introduction
FM-B2702D shows 4 times more pixels compared to a conventional HD monitor. FM-B2702DG supports 3G and 12G SDI. Like all FSN monitors, these units quickly detect and display incoming video signals, thanks to robust mode tables. The FM-B2702D series allow fine details to be seen during minimally invasive procedures such as endoscopy or laparoscopy. Protective corner bumpers on the monitor's outer housing guard against accidental contact injury during busy OR activities.
Features
- 4K UHD medical grade display monitor
- Bonded front filter for higher brightness and contrast ratio
- Flush-front glass and built-in protective corner bumpers
- Robust timing tables for fast recognition of incoming video signals
- Narrow profile for a slim, streamlined design
Specification
General Features
| Item | Description |
| Panel | 27 inch TFT LCD (LED) |
| Resolution | 3840 x 2160 pixel |
| Input Signal | 1 x HDMI 2.0 2 x DP 1.2 (SST) 1 x DVI (single link) 4 x SDI (3G), 2 x SDI (12G) available on FM-B2702DG |
| Output Signal | 1 x DP 1.2 (SST) 1 x DVI (single link) 4 x SDI (3G), 2 x SDI (12G) available on FM-B2702DG |
| Power Supply | AC/DC Adaptor (AC 100~240V, DC 24V 6.6A) |

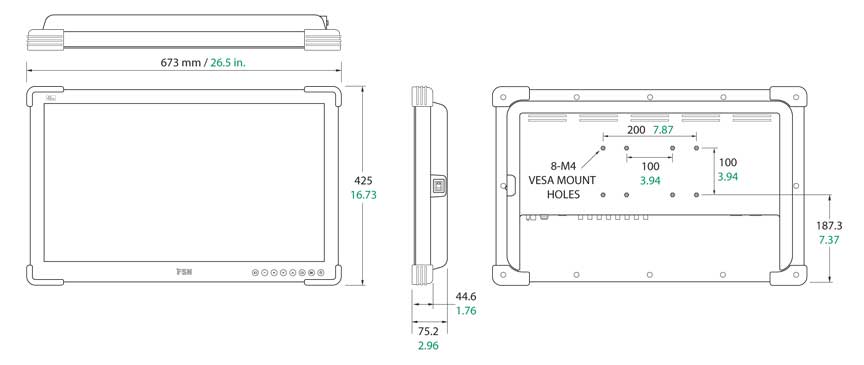

| Unit Dimension | 673(W) x 425(H) x 75.2(D) mm 26.50(W) x 16.73(H) x 2.96(D) inch |
| Brightness | 800 cd/m2 |
| Response Time (G-to-G) | 11 ms (typical rise time) |
| Viewing Angle (CR>10) | R/L 178, U/D 178 |
| Weight | FM-B2702D: 8.73 kg, 19.25 lbs. (monitor with cover) 13.45 kg, 29.65 lbs. (shipping package) FM-B2702DG: 9.2 kg, 20.28 lbs. (monitor with cover) 14.1 kg, 31.09 lbs. (shipping package) |
| Contrast Ratio | 1400 : 1 typical |
| Pixel Pitch | 0.1554 x 0.1554 |
