19" - model FS-Y1901D
Introduction
FS-Y1901D is a cost-effective solution that delivers all of the features required for digital visualization in the surgical environment. It is part of the FSN family of advanced visual integration components for surgery, designed to give medical professionals the clearest images, and complete control of video signals in the OR. User preset modes allow customized profiles (color settings, screen layouts) to be stored and recalled later.
Features
- Specifically designed for displaying surgical images
- Compact size
- Back cover plate helps cleanly manage cables and wires
- Exceptional image quality
- Multi-modality image display for medical applications
- Designed and manufactured for use in the medical OR
- Longer life, cool temperature LED backlight
Specification
General Features
| Item | Description |
| Panel | 19 inch TFT LCD (IPS) |
| Resolution | 1280 x 1024 pixel |
| Input Signal | 1 x DVI‐D 1 x VGA (D-sub) 1 x SD/HD/3G‐SDI (BNC) 1 x C-Video (BNC) 1 x S-Video (Y/C) (BNC) 1 x Component (RGBS, YPbPr) (5 x BNC) |
| GPIO Port | Swap, PIP / PBP1 / PBP2 Select, Record indicator |
| Output Signal | 1 x DVI‐D 1 x SD/HD/3G‐SDI (BNC) |
| Power Supply | AC/DC Adaptor (AC 100~240V, DC 12V 7A) |
| Control Key | Power, Menu, PIP, Up, Down, Plus, Minus, Input |

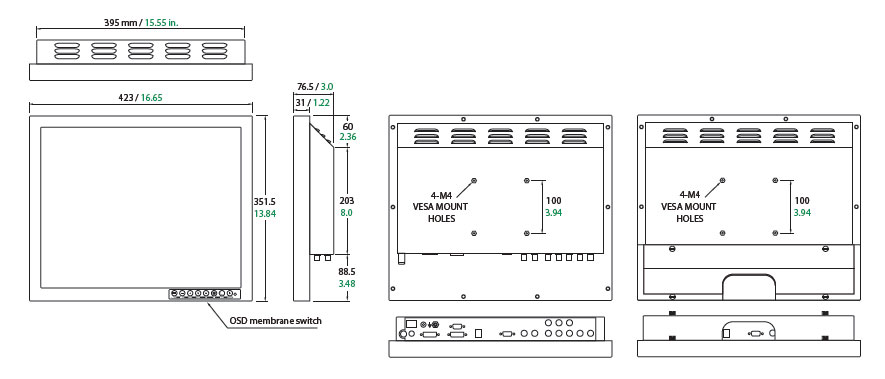

| Unit Dimension | 423 (W) x 351.5 (H) x 76.5 (D) mm, 16.65 (W) x 13.84 (H) x 3.0 (D) inch |
| Brightness | 500 cd/m2 |
| Response Time (G-to-G) | 25 ms |
| Viewing Angle (CR>10) | R/L 170, U/D 170 |
| Weight | 6.04 kg, 13.32 lbs. (monitor with cover) 9.47 kg, 20.88 lbs. (shipping package) |
| Contrast Ratio | 800 : 1 Typical |
| Pixel Pitch | 0.294(W)mm x 0.294(H)mm |
